Draw it on your lot. Print it to scale.
Site Plan Studio lets you draw your project on your plat of survey or on the property map and print it to a true engineering scale. It measures as you draw and checks the drawing against the size and coverage rules found for your lot. When a rule or a measurement is missing, it says so instead of showing a pass.
- 2
- sheet sizes: 8.5×11 and 11×17
- 7
- engineering scales, from 1 inch = 10 feet to 1 inch = 100 feet
- 6
- measurements checked as you draw
See it in the app

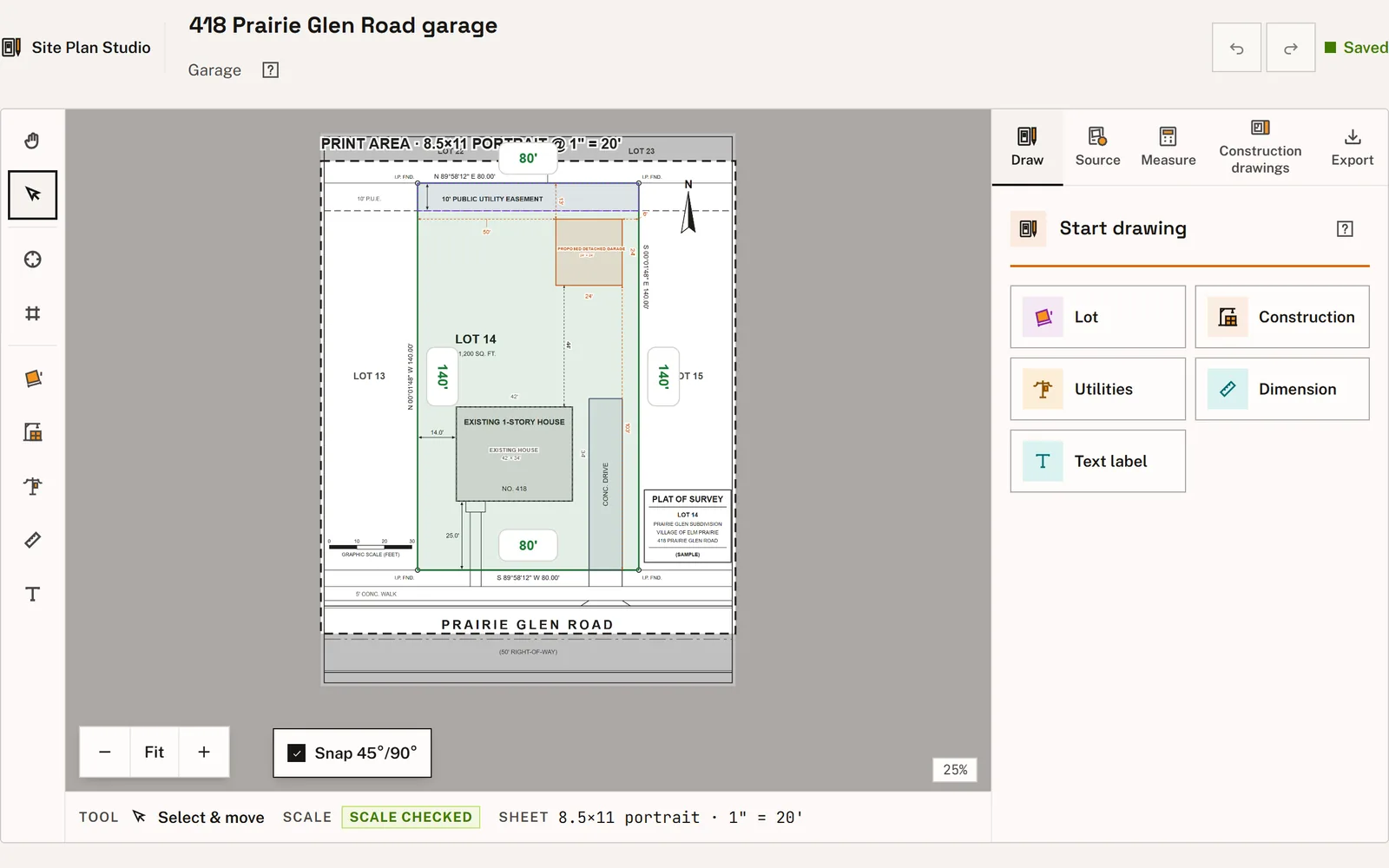

The real screen, with sample data
Step 01 of 07
The plat of survey loads at its true scale.
How it works
From the first step to the last
Start from what you have
Upload a plat of survey or another PDF, a photo of a paper sheet, or send a view from the property map that is already calibrated.
Calibrate
Use the scale stated on the PDF, two points on a known dimension, or a second check that corrects phone scans squeezed in one direction. When a web-map printout's scale bar can't be trusted, the Studio says so.
Draw
Trace the lot, place and rotate structures, and draw fences, decks, paving, utilities and additions, with snapping and touch controls on phones and tablets.
Check as you go
Lot area, proposed area, building coverage and impervious coverage update as you draw, compared with the department's limits where they are known.
Print or save
Export a PDF on letter (8.5×11) or tabloid (11×17) at a standard engineering scale, and reopen the plan later.
What you see
Measured as you draw
Lot area
From the lot you trace or the calibrated parcel.
Proposed area
The footprint of what you're adding.
Main building
The house or principal building on the lot.
Existing accessory buildings
Sheds, garages and other structures already there.
Building coverage
Compared with the lot coverage limit, where known.
Impervious coverage
Compared with the impervious surface limit, where known.
Plainly
What a site plan is not
- It is a planning drawing, not a survey or a plat of survey.
- It never invents setbacks, clearances or engineered design. Unknown or conflicting rules stay labeled.
- It is not a stamped or engineered drawing.
Who it's for
Built for the people on the permit
Contractors
Draw your own plans, or order managed site plans, depending on the plan you're on.
Homeowners
Site plan preparation comes with Done For You.
Design pros
Site context for early design work.
Keep reading
Site Plan Studio
See which plans include it.
Site Plan Studio and managed site plans vary by plan.
